High Definition Caching Music Server / Streamer
1 x 8TB SSD Installed with Extra Slot for Additional Drive
USB, AES/EBU, Coaxial, BNC, Optical Outputs, and Word Clock InputN30SA
Inheriting Aurender’s unique next-generation family design identity, the N30SA is visually distinguished by both its dual-chassis form factor and wide-screen full-color LCD display first seen on the A30 and N20. At first glance, you immediately notice its substantial presence, elegance and grace – a visual metaphor of what to expect sonically. However, N30SA’s audiophile essence also lies within its inner beauty. N30SA takes its hardware and circuit topology innovations first explored on the N20 to its empirical conclusion. N30SA goes above and beyond the N20 in terms of noise and jitter reduction, increased dynamics and uncompromised purity of the audio signal.
https://aurender.com/n30sa/

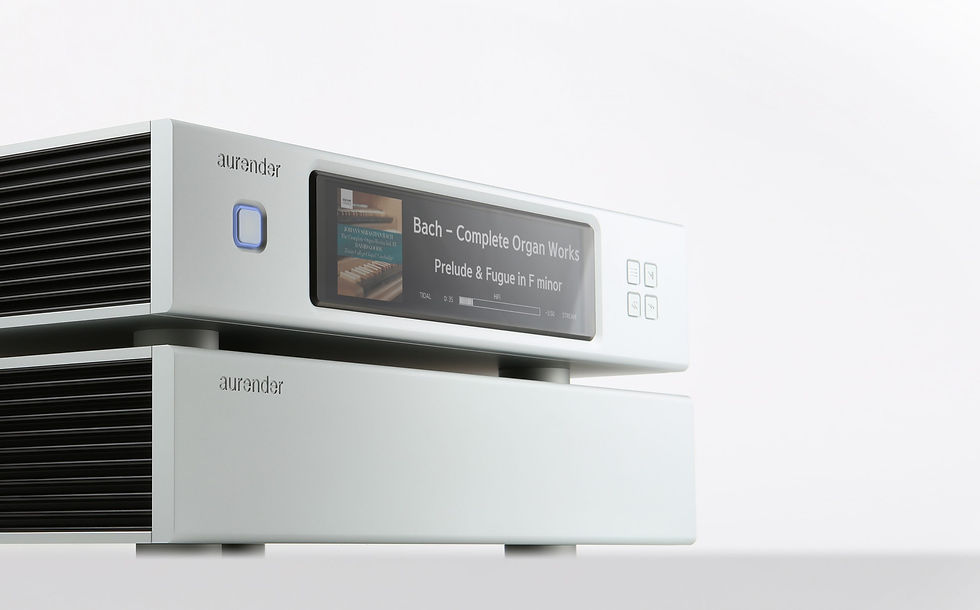

Aurender N30SA
N30SA SPECIFICATIONS
Front Panel Display Full-Color 8.8” 1920 x 480 wide IPS LCD CPU Intel Low Power Quad-Core System Memory 8GB SSD for System and Cache 480GB SSD Main Clock OCXO Based Precision Jitter Reducing Clock Storage 8TB SSD installed. Slot for additional 2.5” drive Word Clock Input BNC 10MHz, 12.8MHz (44.1kHz and 48kHz multiples from 1 to 512), Input impedance 75 ohms I/O Ports 2 x USB 3.0 (rear) Digital Audio Outputs AES/EBU, Coaxial, BNC, Optical and USB Audio Class 2.0 x 1 SPDIF Audio Output PCM up to 24-bit / 192kHz USB Audio Output 32-bit / 384kHz, 1-bit, 2.8MHz (DSD64); 1-bit, 5.6MHz (DSD128), 11.2MHz (DSD256), 22.4MHz (DSD512) Compatible Formats DSD (DSF, DFF), WAV, FLAC, AIFF, ALAC, M4A, APE DSD-to-PCM Precision DSD-to-PCM conversion for SPDIF outputs Support for DSD64/128/256/512 to 88.2kHz or 176.4kHz MQA Core Decoder Optional Gigabit Ethernet Double-Isolated x 1 Power Supply Full-Linear supply isolated by separated chassis UPS Yes (Super Capacitor based) Control Software Aurender Conductor for iPad, Android Phone / Tablet Material Machined Aluminum Chassis Dimensions & Weight (each) 16.9 x 4.2 x 14.0in., 48.5lbs / 430 x 106 x 353mm., 22.0kg Power Consumption Play (40W), Peak (70W), Standby (3.5W)
